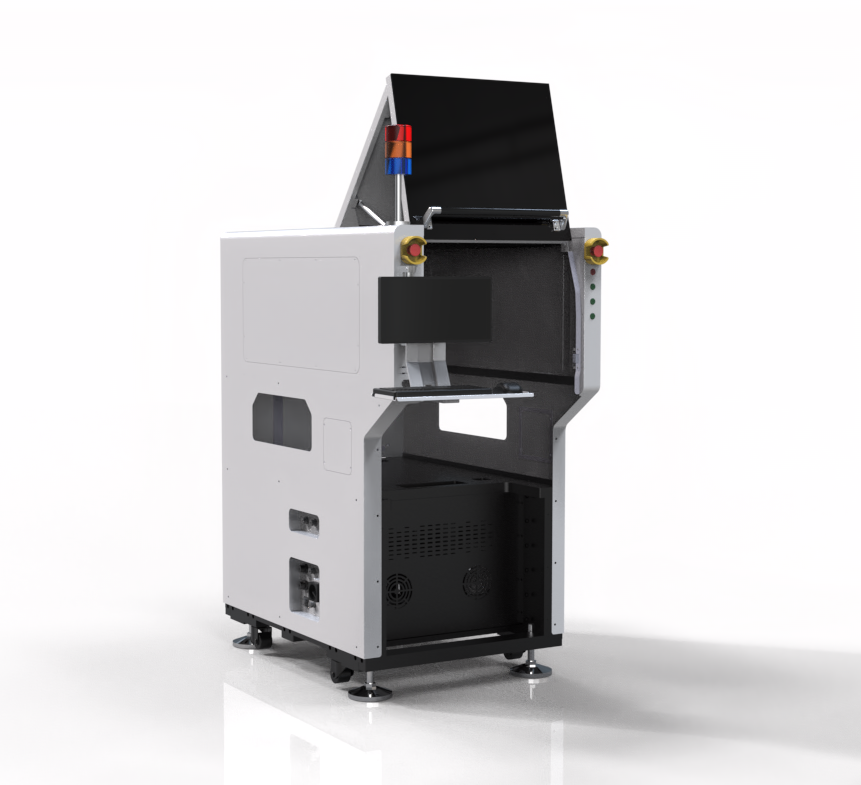

MINI Plug-in Machine

1. Specifications:

· Dimensions: D1430mm*W805mm*H1600mm; Weight: about 1100KG (refer to PUMA PS)

2. Parameters:

· Plug-in range: 2 head 380W*390D; 4 first 305W*340D

· Supported component size: 50*50*60mm (W*D*H) / 25mmH down

· Allowable component weight: within 200g

· Line body height: 900±20mm

· Material grabbing mode: pneumatic claw/suction nozzle

· Feeding position: pre-feeding

· Power Supply: three-phase AC380V,50/60Hz, power 4KW

3. Features:

· High speed/high precision: ±0.01mm.

· Handle various component inserts in a smaller footprint.

· Modular design of workbench, suitable for various applications.

· Integral casting, high rigidity of moving parts, stable mechanical properties.

· Auxiliary functions: automatic claw change, NG automatic material receiving.

· Advanced software platform, process software system consistent with actual production.

· Able to complete the supply and assembly of multiple versions of products, which can meet the needs of instant customization of customers and flexible production of different products in intelligent manufacturing.

4. Model:

· Figure 1 is TigerⅠ

· Figure 2 is TigerⅡ

· Figure 3 shows LeopardⅠ

· Figure 4 shows PUMA PS

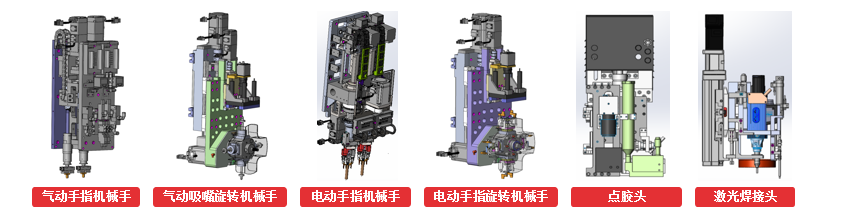

电动手指机械手能精确控制手指开合宽度，既有利于夹持不同大小的元器件，又有利于在密度较高的电路板上完成插装作业。长园电动手指机械手拥有强大的通用性：
含两个电动夹头 + 一个真空吸嘴的双栖机械手，能处理不同尺寸的元件。
电动夹头手指和真空吸嘴都可以快速自动更换以适应不同形状元件的插装。
电动夹头/气动吸嘴都配备插装过程控制传感器，及检查插装过程又保护了电路板不被划伤。

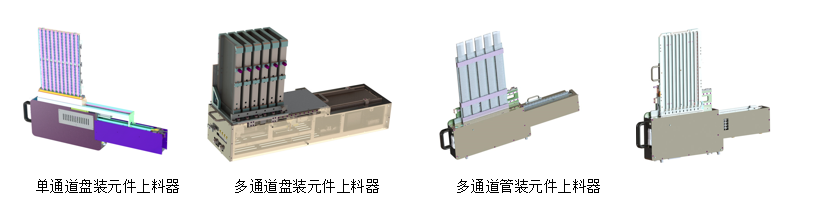

用体积小巧的上料器取代了上料车，大幅提升单台设备的上料能力。

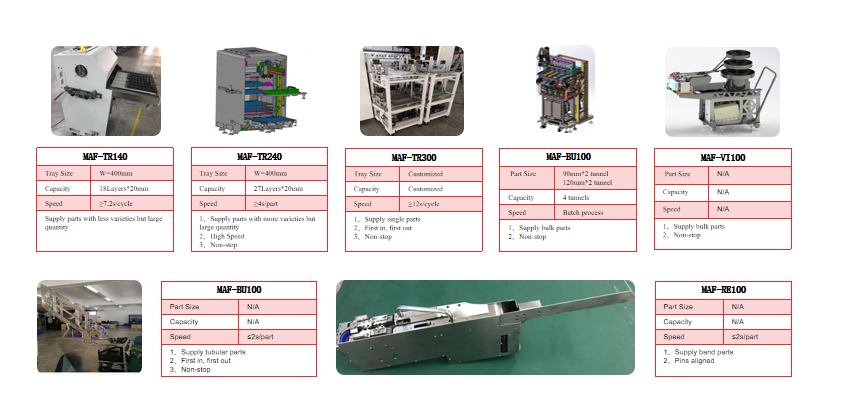

不同种类的元器件直接通过各自滑道供应到机械手下方，省去料车需要反复切换料盘而损失的大量时间。
直接将元器件方向翻转和切脚成型等功能整合在上料器内一次完成，省时省钱。
