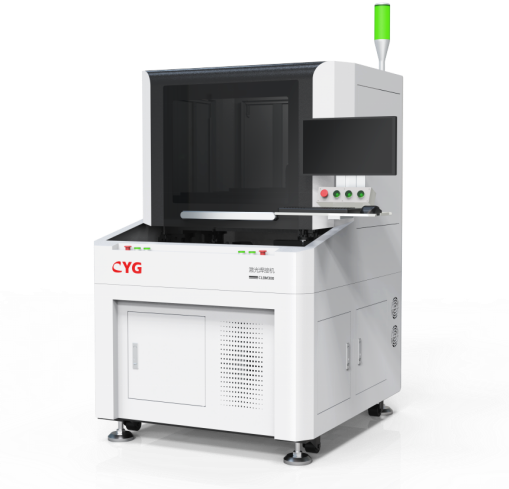

Automatic Laser Soldering Machine

1. Specifications:

· Dimensions: D1060mm*W1300mm*H1690mm (excluding three-color lamp); Weight: about 930KG

2. Parameters:

· Laser power: 50w/100w

· Laser wavelength: 1070nm

· Welding mode: laser tin ball injection

· Tin ball diameter: standard 0.3mn (0.09~0.76mn optional)

· Positioning method: CCD positioning

· Repetition accuracy: X/Y :+/- 0.005mm, Z:+/-0.01mm

· Number of stations: double stations

· Cooling method: air cooling

· Welding range: X: 250mm * Y: 250mm (single platform)

· Welding efficiency: 12000 solder joints/hour (including movement time)

· Power supply: AC220V 25A 50/60Hz

3. Features:

· Double station design, independent photography and welding, welding head can work continuously, high efficiency.

· Integrated casting frame with high stability.

· Precise positioning of CCD, capable of producing ultrafine and small products with high precision.

· Fast welding speed and small heat affected area.

· Independently developed welding software, which is easy to operate and can be upgraded according to special products.

· Extensible spray ball welding monitoring and post-welding detection function.
